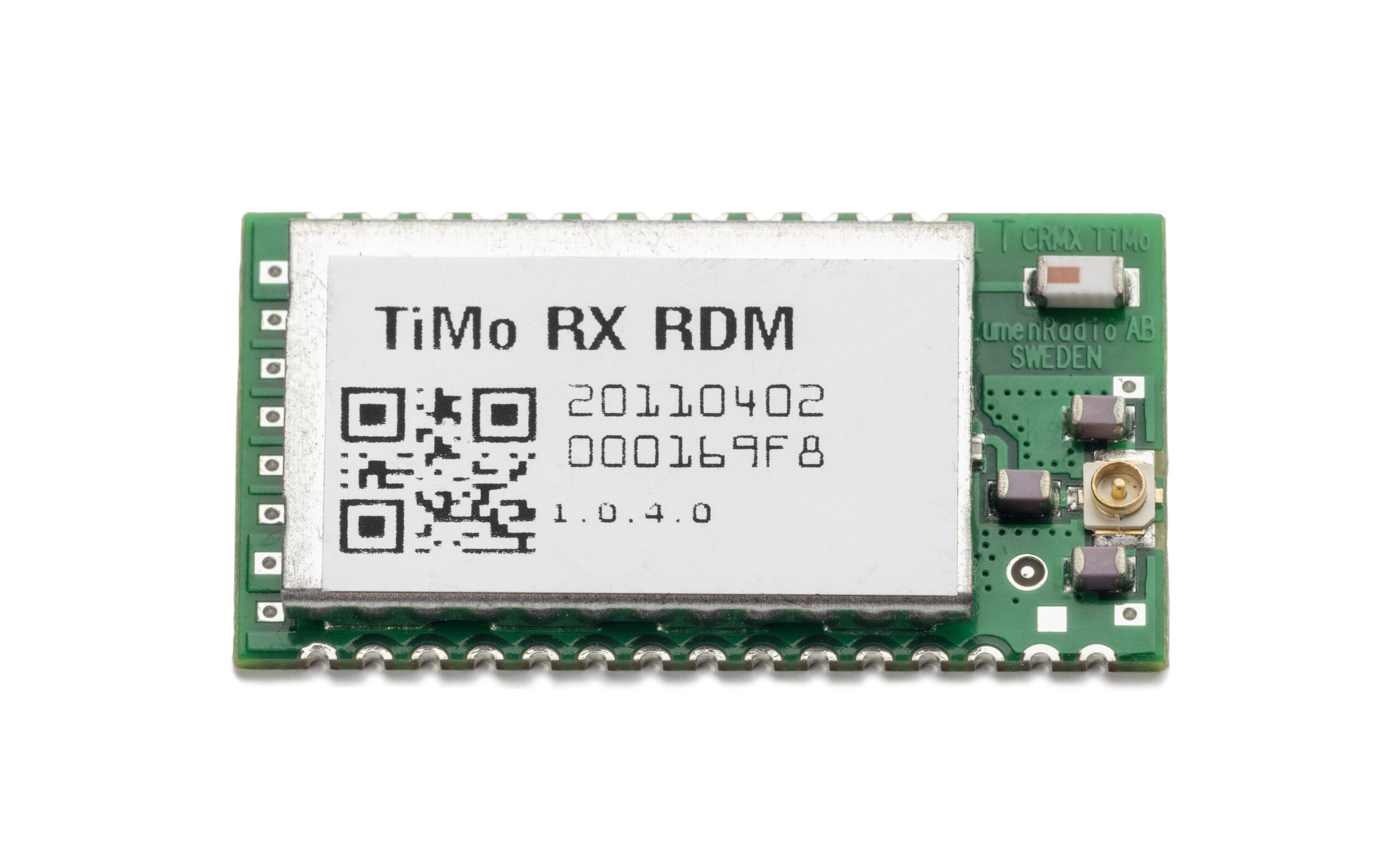

TiMo RX Picture

TiMo RX

Certified CRMX Receiver module

TiMo is small on form factor but huge on functionality in a SMT package of just 33.5mm x 18.5mm, with features such as over-the-air firmware upgrades, SMT mounting and an integrated on-chip antenna as well as a UF.L connector for external antenna.

TiMo RX RDM is a DMX/RDM receiver for one full DMX universe of up to 512 channels at maximum refresh rate. TiMo RX RDM is fully RDM compatible to allow for remote configuration and monitoring of supported fixtures when used together with RDM compatible CRMX equipment.

As with all LumenRadio receivers, TiMo is fully compatible with all existing CRMX transmitters. Available in two different versions offering receiver or transceiver capabilities, TiMo can be used in many different applications to create new and amazing products.

Show More Details
Contact Sales Product Support

CRMX Receiver

RDM Capable

Certified radio module

Internal antenna

Features
  • 33.5mm x 18.5mm SMT module
  • Receiver module
  • SPI DMX window functionality
  • Full RDM support
  • RDM UID Binding capabilities
  • FCC part 15 modular approval
  • ETSI EN 300328 compliant
  • Over the air upgrades of radio drivers
  • Internal and external antenna
  • Average power consumption 40mA in receiver mode, 250mA in transmitter mode
  • Supports all CRMX and W-DMX protocols
Technical data
  • Part Number: 800-8105
  • Radio Type: Transceiver
  • Modes of Operation: Receiver (RX)
  • Mounting Options: SMT
  • Antenna Connector: U.FL
  • Internal Antenna: Yes
  • Dimensions [mm]: 18.5 x 33.5 x 3
  • Power Supply [VDC]: 3.0-3.6
  • Typical Current Consumption [mA]: 40
  • DMX Interface: TLL UART, SPI
  • No. of DMX Channels: 0-512
  • DMX Refresh Rate [Hz]: 1-830
  • RDM Support: Yes
  • Firmware Upgrade: Wired and Wireless
