W-Modbus Solar Kit
SKU 840-2102

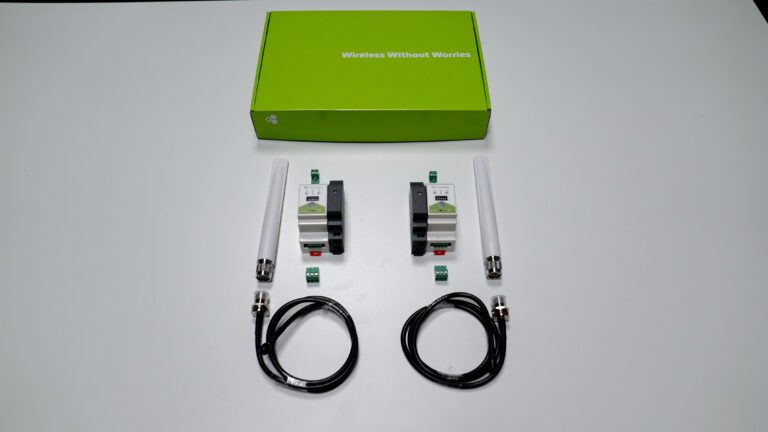

Everything you need to connect your solar inverter and smart meter wirelessly.

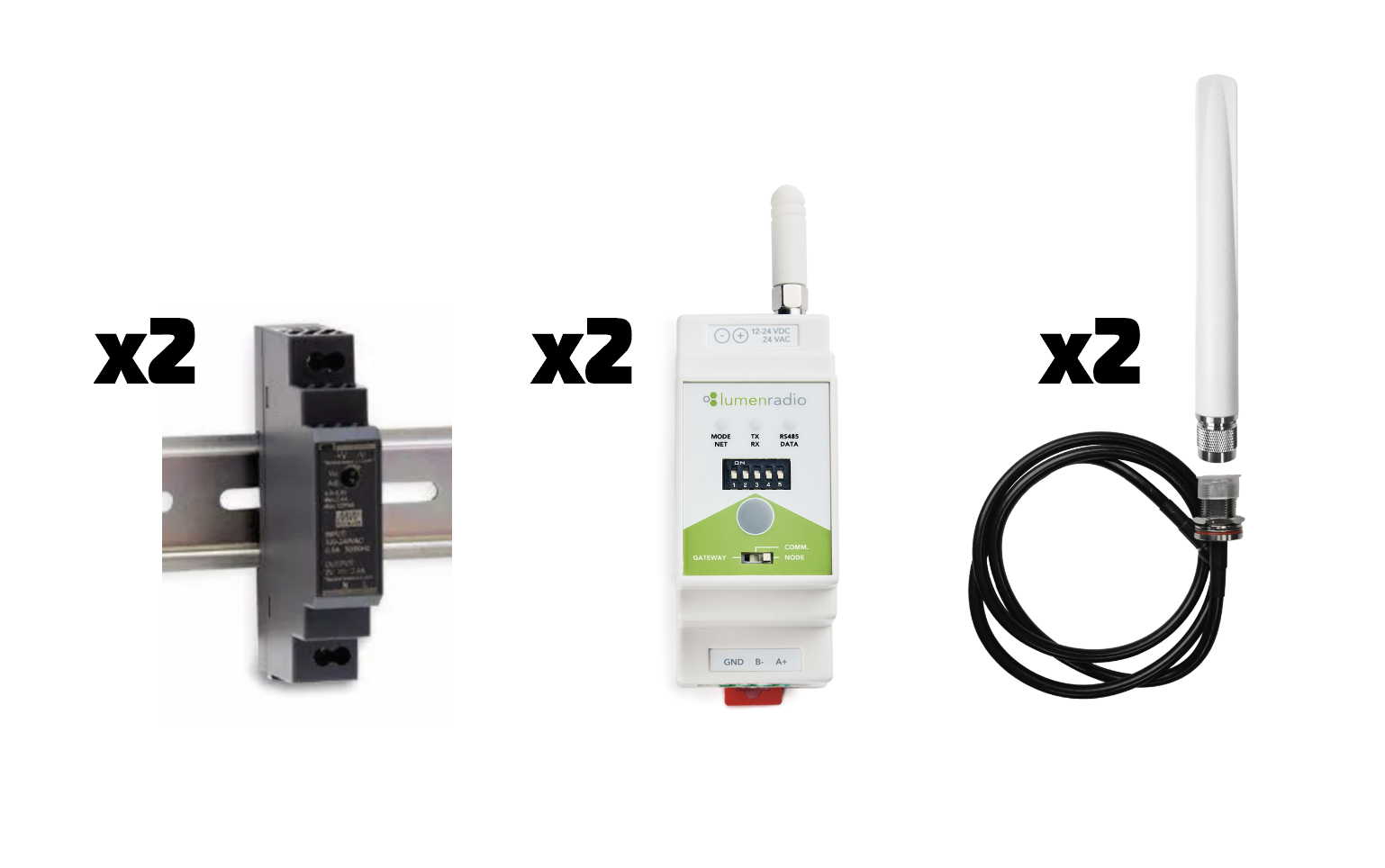

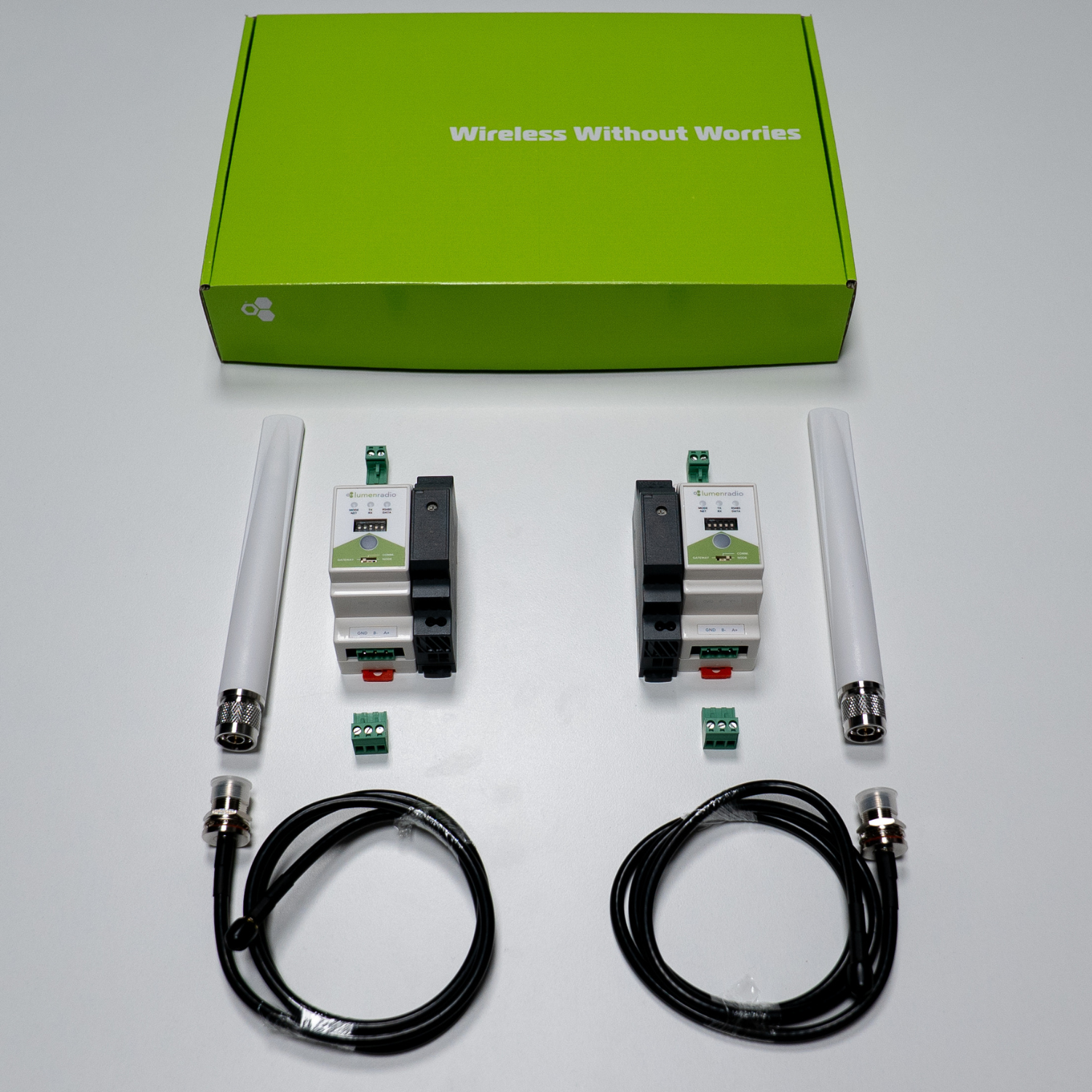

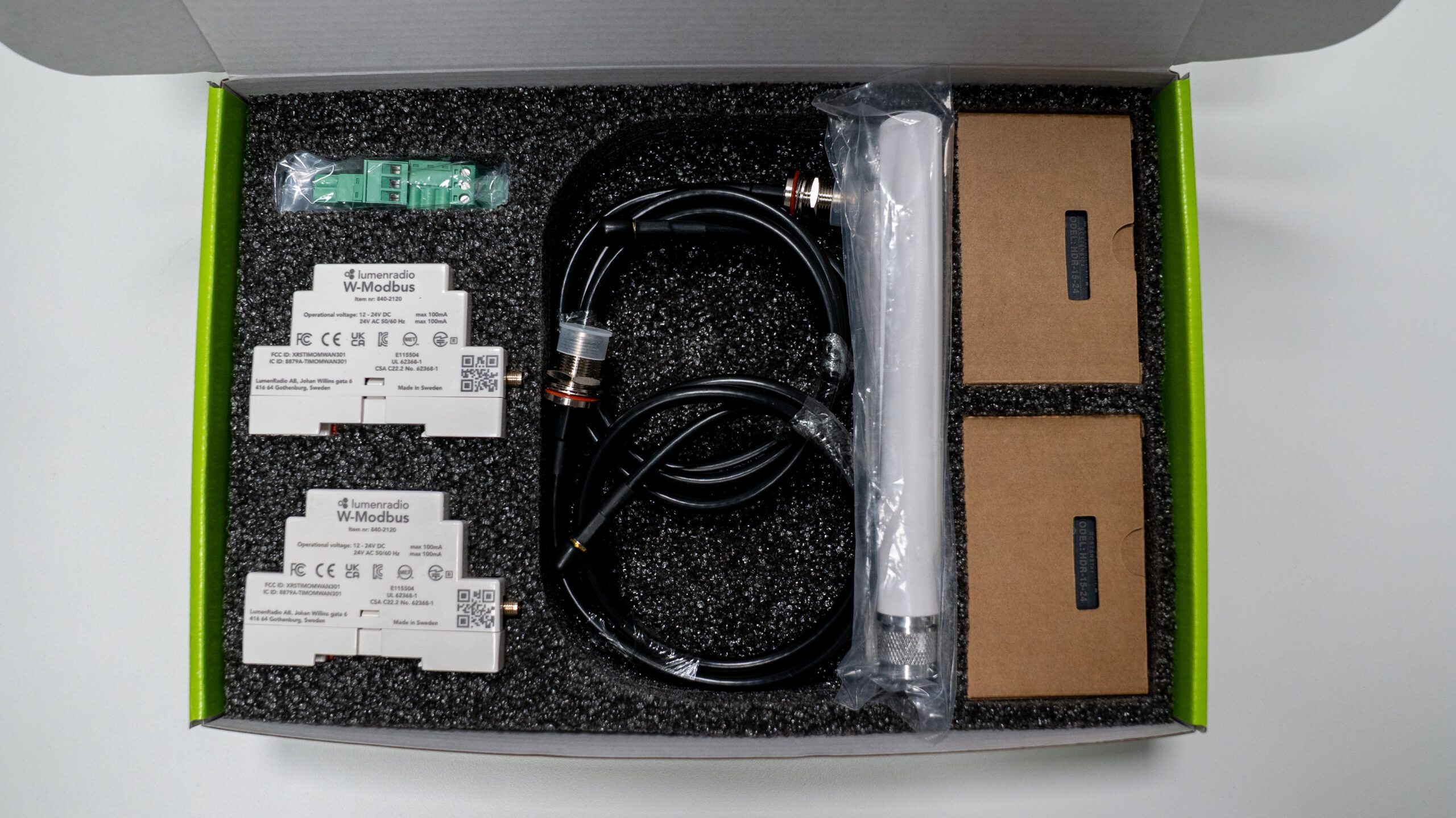

– 2x DIN rail power supply

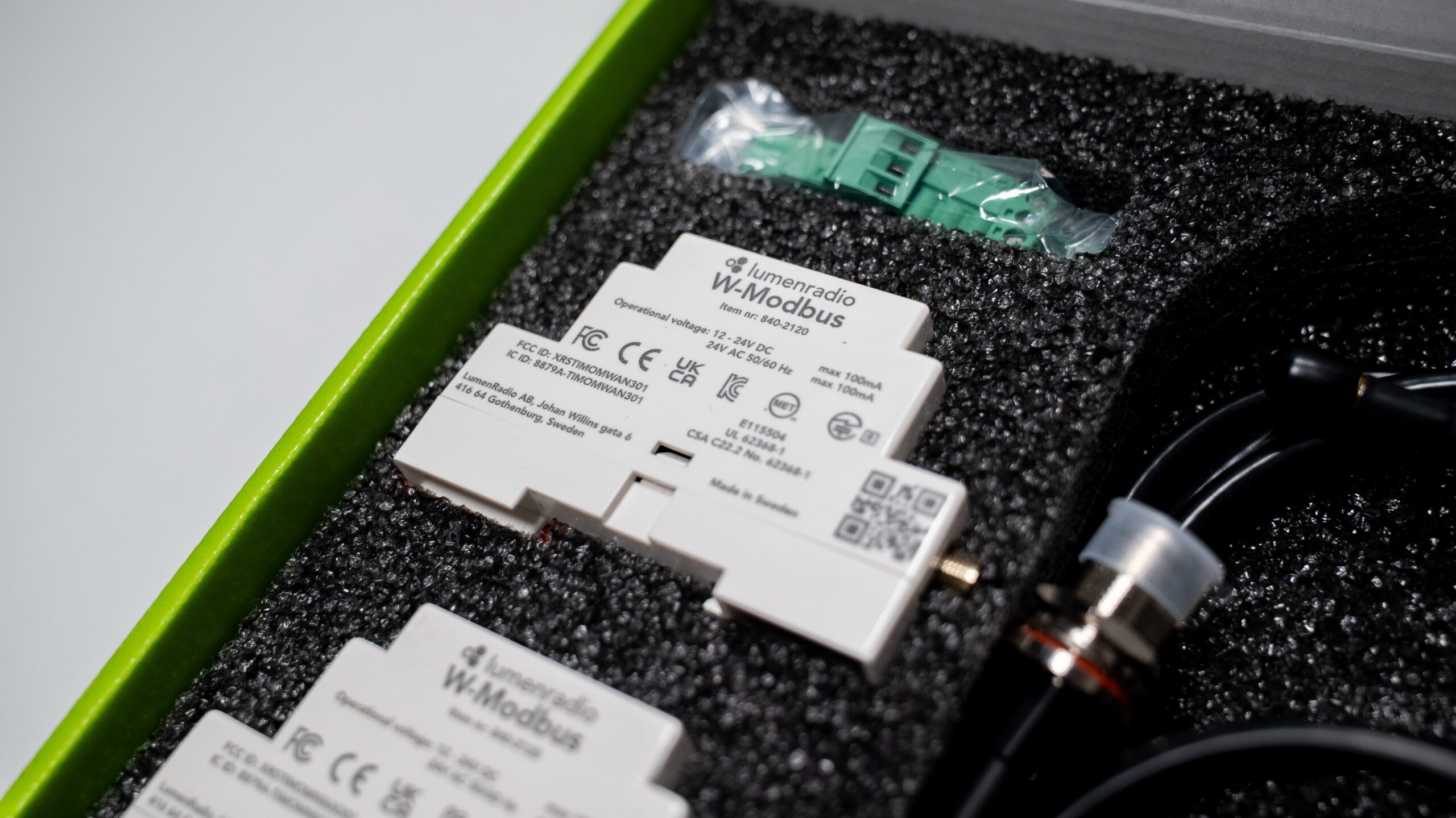

– 2x W-Modbus DIN rail

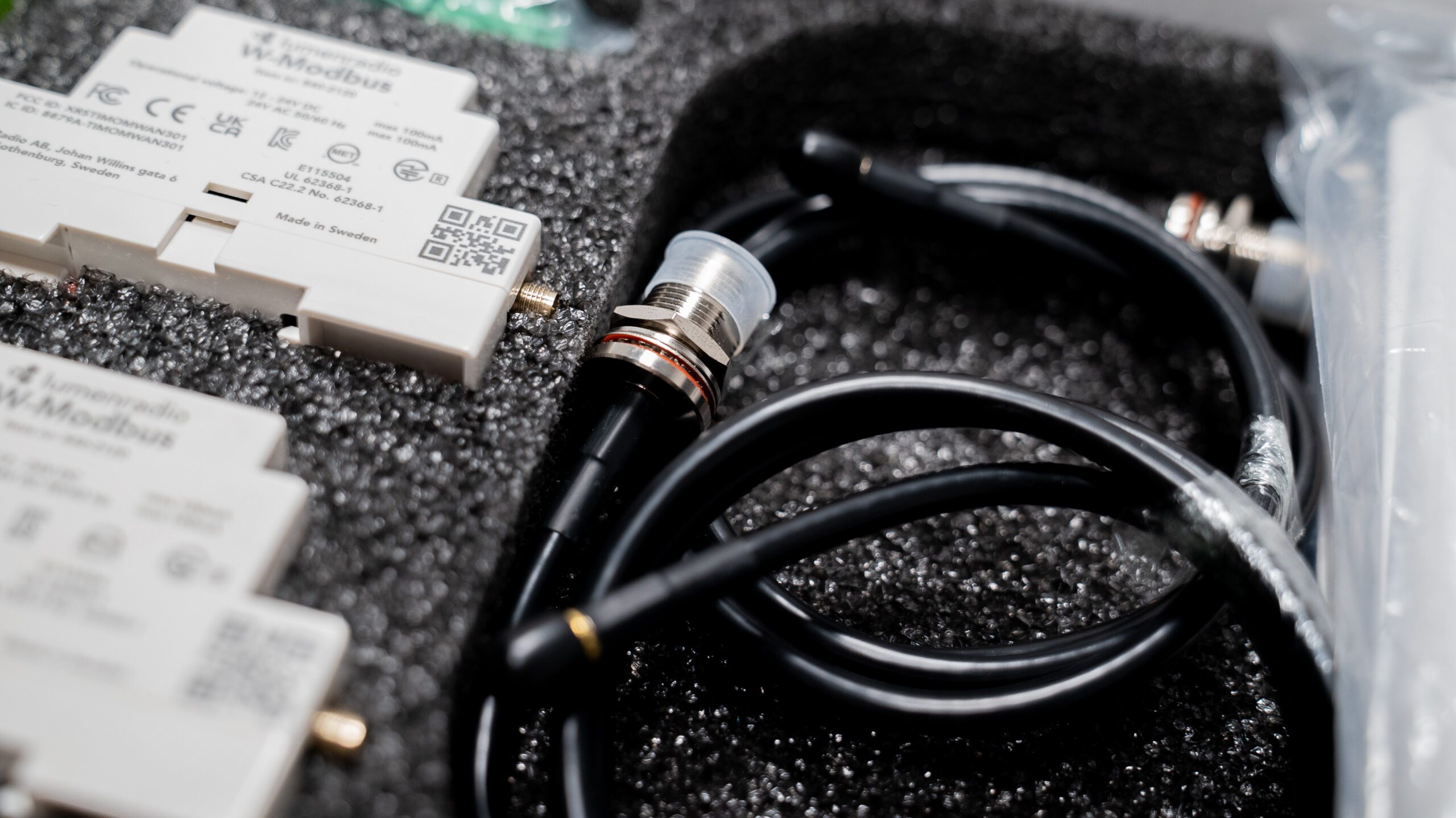

– 2x DIN rail omni antenna kit, incl. 1m cable

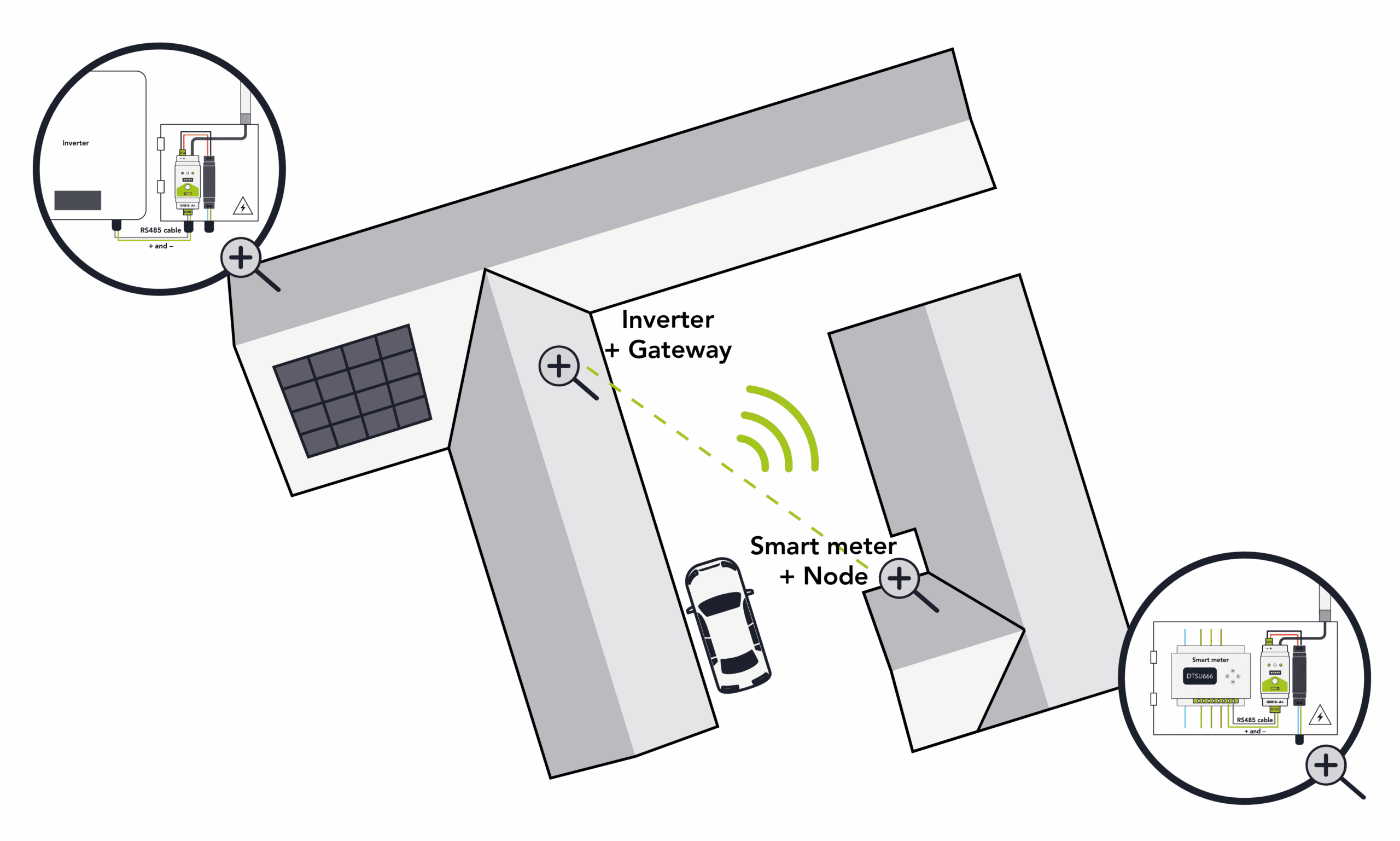

The Solar Kit comes with wirelessly prepared gateway meant to be connected to the inverter, and paired node to be connected to the smart meter.
W‑Modbus replaces traditional Modbus RTU cabling with a highly reliable wireless mesh, eliminating the need for time-consuming installation planning, complex wiring, daisy-chaining, and troubleshooting. Its plug‑and‑play design requires no programming, making deployment fast and straightforward while enabling energy savings and supporting sustainability goals. By transforming wired systems into wireless solutions, W‑Modbus simplifies retrofits and scaling for modern industrial environments.
The W‑Modbus solution operates as a proxy for connected Modbus RTU devices, effectively extending the Modbus bus over a wireless network while preserving the Modbus RTU standard and maintaining low latency. A typical setup includes one W‑Modbus gateway supporting up to 100 nodes. It is built on LumenRadio’s patented MiraMesh technology, which ensures ultra‑reliable device-to-device connectivity, supports concurrent Bluetooth operation, and provides extended communication range.
Instant installation
Unique reliability
Baud rate agnostic
Long range
- Out-of-the-box installation – just power up and connect to your Modbus device and you are up-and-running.
- Pre-commissioned – Connect the inverter at the gateway and the smart meter at the node.
- Add extra node for range extension.
- Range – 700 meters (line-of-sight) per hop in the mesh network (approximately 50- 70 m indoors with walls)
- Cognitive Coexistence – LumenRadio’s patented technology provides industrial-grade reliability and immunity to interference.
- Power supply AC: 24 VAC ±15%
- Power supply DC: 12–24 VDC ± 15%
- Max. power consumption: 2.5 W
- Auto resettable fuse: Yes
- Solid cable rating, connector: 0.2 – 1.5 mm2
- Stranded cable rating, connector: 0.2 – 1.5 mm2
- Conductor sizes (AWG): 24 – 16
- Range – 700 meters (line-of-sight) per hop in the mesh network (approximately 50- 70 m indoors with walls)
- 1.8 dBi Outdoor Antenna with 1 m antenna cable
- IP class: 20
- Dimensions (W x H x D): 36.5 x 93.0 x 58.7
- Weight: 87 g
- Power source restriction: Only to be powered by a UL listed LPS power supply of max 15 W
- Ambient operating temperature: -20 to +55°C
- Ambient storage temperature: -30 to +80°C
- Relative humidity: 10 – 95% non-condensing
- Material: ABS UL94-V0 Color:
- White Frequency band: 2.45 GHz, ISM band (2400-2483 MHz)
- Baud rate: 9 600, 19 200, 38 400, 76 800 bps
