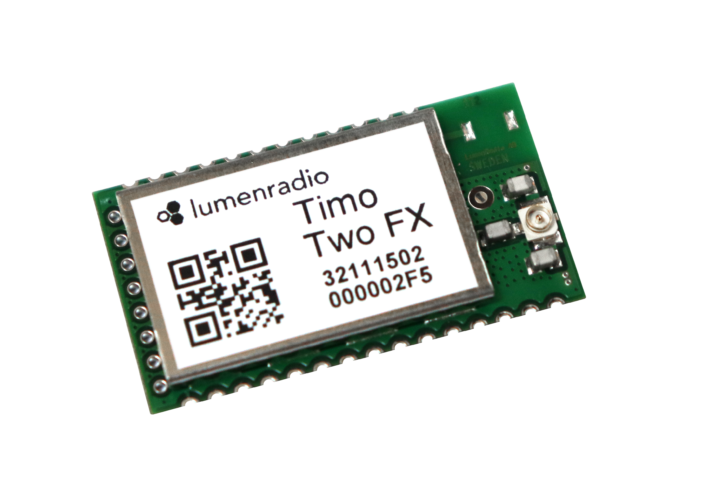

- Certified CRMX Transceiver module with concurrent Bluetooth.
With TimoTwo we are taking our technology to the next level. Concurrent Bluetooth enables easy setup, configuration and lighting control using portable devices and makes TimoTwo the most reliable and useful radio module for wireless DMX.
The new TimoTwo has the same capacity as the original TiMo – and more. TimoTwo marks the new era of reliable wireless DMX communication, with unprecedented possibilities. Our TimoTwo is a fully integrated DMX/RDM module and offers over-the-air firmware upgrades, SMT mounting, and a UF.L connector for external antennas.
TimoTwo is an incredibly powerful module; thanks to its high performing processor, we are able to add almost unlimited new features over time without sacrificing performance. Features such as improved cognitive coexistence, third party lighting control support, and RDM control are just a few examples on what we are looking to add later on. …and you will be able to access these new features with just an update to the software – no new hardware is needed!
And with the Bluetooth compatibility in TimoTwo™, you can get access to these updates in the simplest way possible – every time we do an update to the TimoTwo™ software or add new functionality, you can access these new functions by using our CRMX Toolbox app to update your TimoTwo module. No need for manual updates using cables – just connect to your fixture in the app and start the update. Besides this, Bluetooth compatibility opens up a possibility for endless third party applications.
Unlike all other wireless DMX radio modules on the market, TimoTwo™ is a dynamic platform, always evolving to offer you the best and latest wireless functionalities.
Certified radio module
- Concurrent Bluetooth
- Full RDM support
- Supports all CRMX and W-DMX protocols
- Receiver or Transmitter Flex mode
- Over-the-air software upgrades
- External antenna

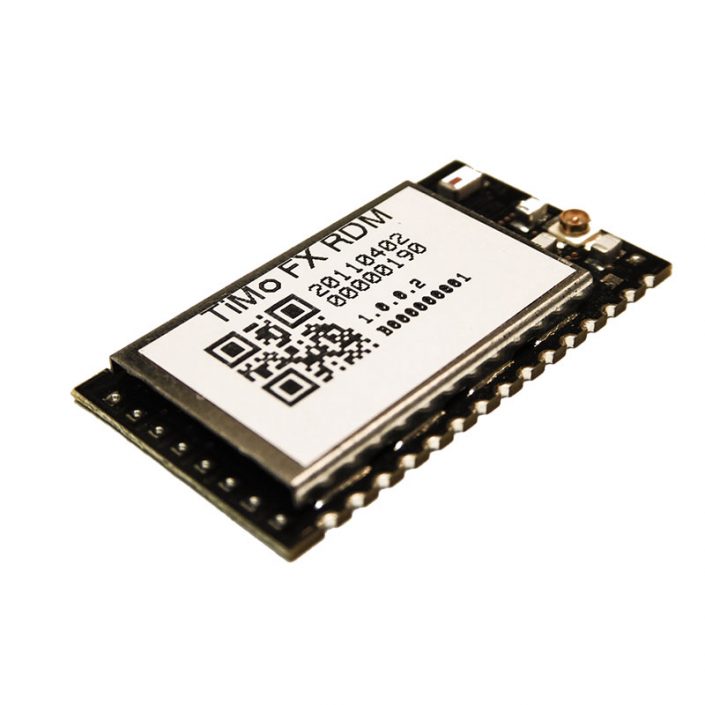

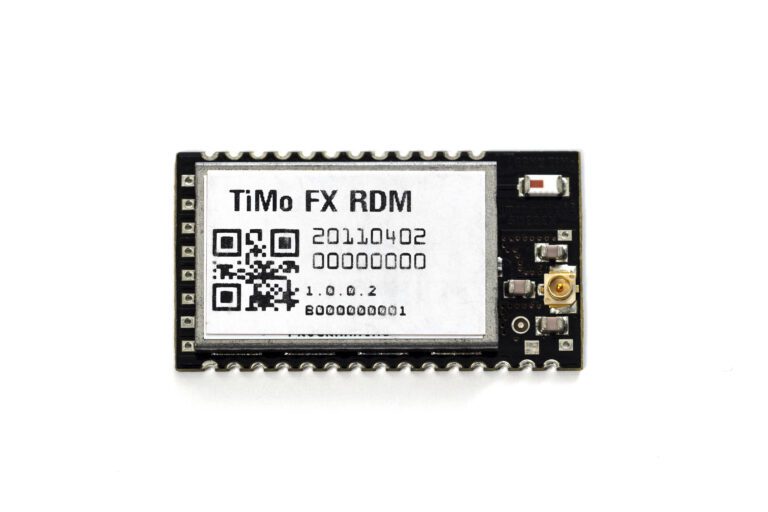

- Footprint and pin compatible with original TiMo module
- DMX window functionality
- RDM UID Binding capabilities
- Average power consumption 40mA in receiver mode 250mA in transmitter mode
- FCC part 15 modular approval
- ETSI EN 300 328 v2.1.1 compliant
- 33.5mm x 18.5mm SMT module
- Part Number: 800-8107
- Radio Type: Transceiver
- Modes of Operation: Receiver (RX), Transmitter (TX)
- Mounting Options: SMT
- Antenna Connector: U.FL
- Internal Antenna: No
- Dimensions [mm]: 18.5 x 33.5 x 3
- Power Supply [VDC]: 3.0-3.6
- Typical Current Consumption [mA]: 40 (RX), 150 (TX)
- DMX Interface: TLL UART, SPI
- No. of DMX Channels: 0-512
- DMX Refresh Rate [Hz]: 1-830
- RDM Support: Yes (in RX mode)
- Firmware Upgrade: Wired and Wireless
