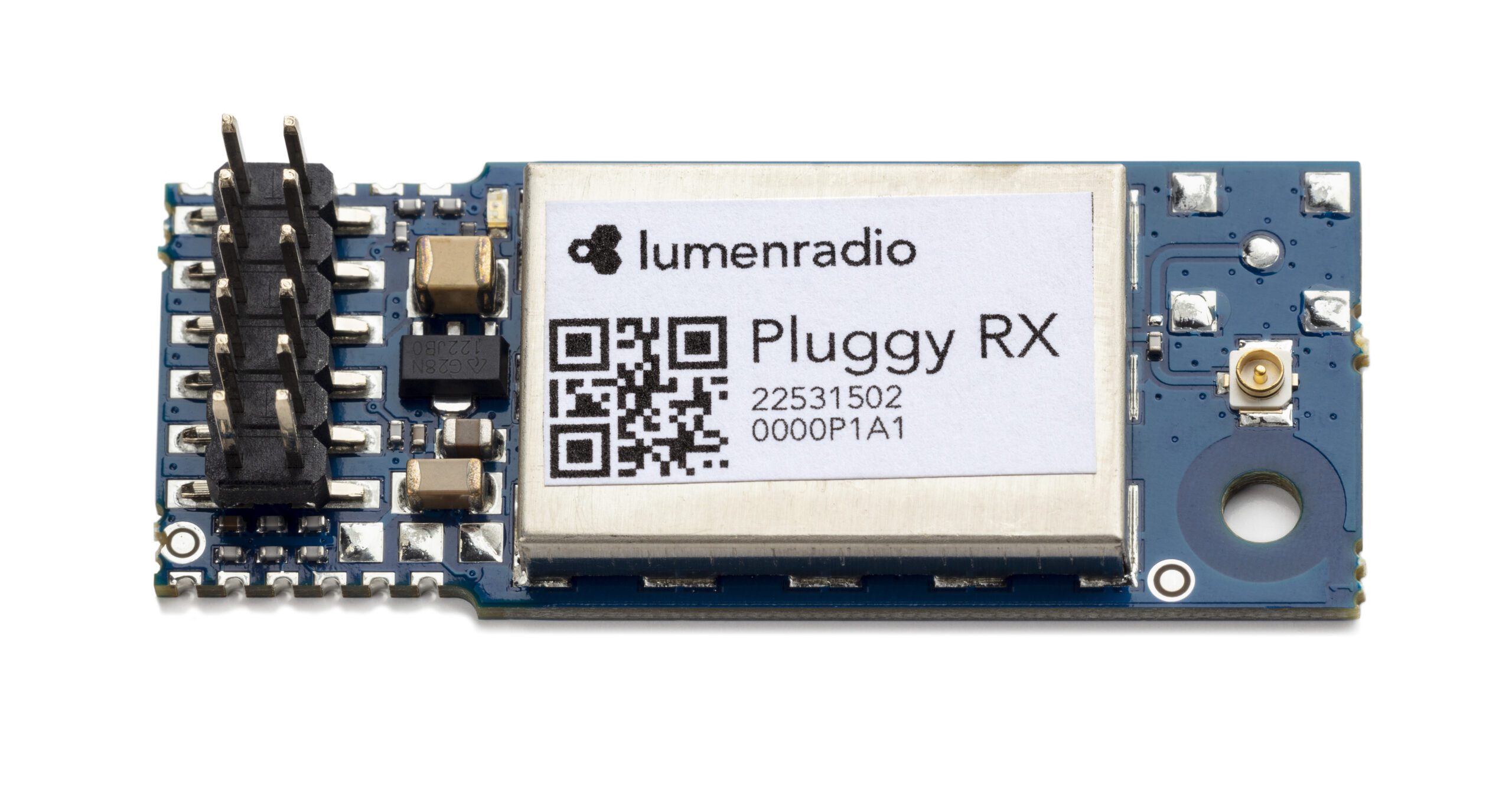

Pluggy RX
SKU: 800-8108
Pluggy is the easiest way to quickly integrate Wireless DMX by using the 2x6 pin header, making it the ideal module for projects where Wireless DMX remains an optional accessory with either receiver or transceiver capabilities.
Building as a pin compatible replacement of the W-DMX TiNY module, LumenRadio offers CRXM Pluggy - the first plug-in module compatible with CRMX, CRMX2, W-DMX G3, G4S and G5.
Pluggy is pending approval for ETSI EN 300 328 (v2.2.2) revision as well as FCC certification with a modular approval up to 100mW.
Pluggy allows for a flexible integration where the option to install the module or not can be done late in the manufacturing process, or even post-sales by a certified service technician.
CRMX & W-DMX Receiver
Certified radio module
External antenna
- Receives CRMX2, CRMX Classic, W-DMX G3, G4, G4S and G5.
- Supports ANSI E1.11 – DMX512-A
- Cognitive coexistence – dynamically avoids occupied frequencies (in CRMX modes)
- DMX fidelity and frame integrity
- DMX frame rate and frame size auto sensing
- Fixed 5 ms end-to-end latency
- U.FL/IPEX external antenna connector
- All configuration data is stored in non-volatile memory, 20 years data retention
- Pluggy contains upgradeable firmware for future proofing
- Over-the-air firmware upgrades
