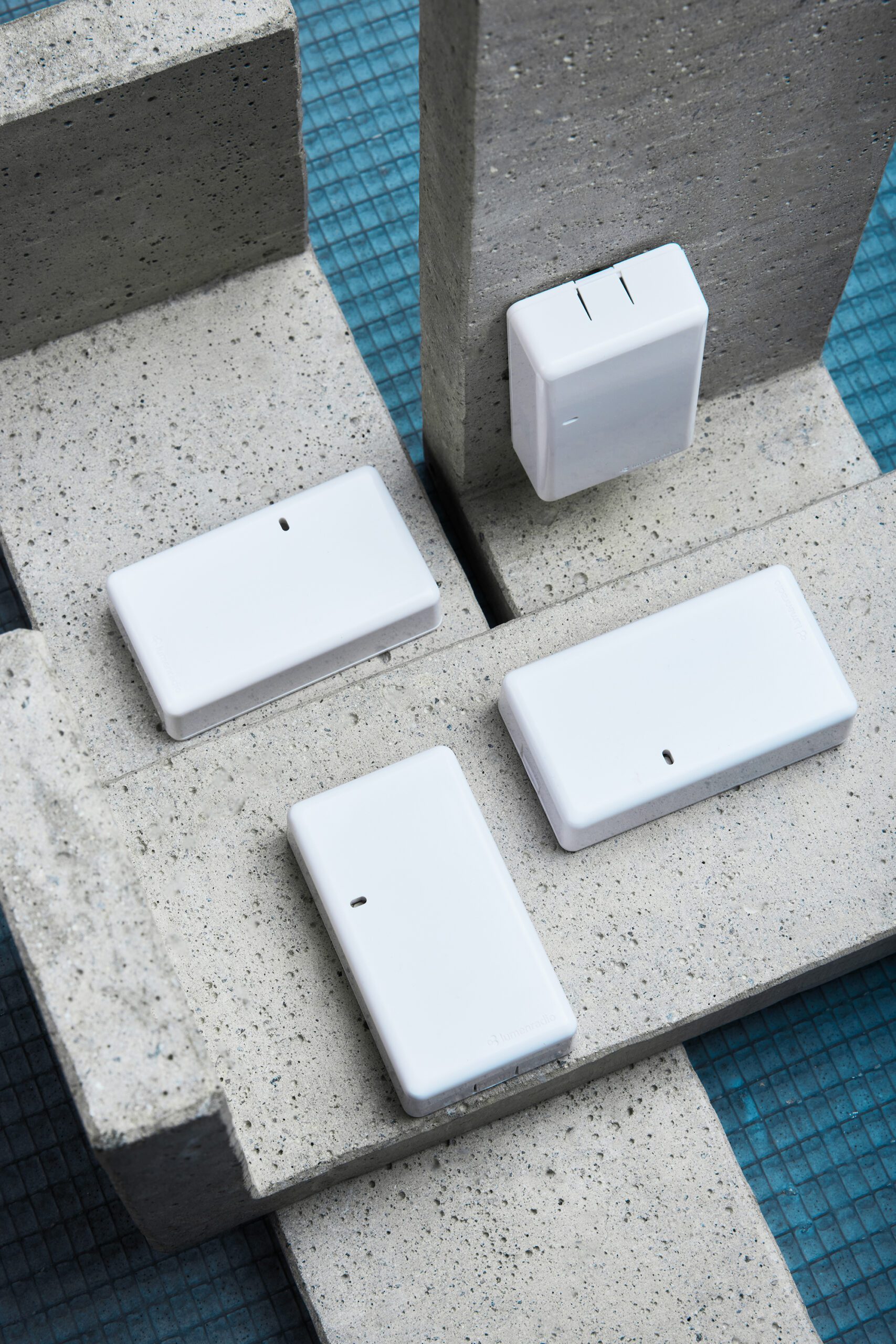

W-BACnet Compact
SKU 840-2230
Small footprint for fast installation on or inside the wall.
– Click on mount
– No dip switches
– Screw terminals
For hotels, offices, retails etc. Room controllers, VAVs, FCUs etc.
BACnet MS/TP through reliable wireless mesh
W-BACnet replaces the BACnet MS/TP cable with a reliable wireless mesh - it eliminates time-consuming installation planning, cabling, daisy-chaining and troubleshooting. Plug-n-Play: No programming required. Enable energy savings and meet sustainability targets with wireless control.
The W-BACnet product acts as a proxy for a connected BACnet MS/TP device, effectively extending the bus and creating the possibility to make wired products wireless. A W-BACnet network consists of a single W-BACnet Gateway with up to 100 W-BACnet Nodes.
Patented technologies
The W-BACnet product is built upon LumenRadio’s patented meshing technology MiraMesh - providing ultra-reliable device-to-device connectivity, easy installation, concurrent Bluetooth and extended range.
With LumenRadio’s W-BACnet solution it is possible to create a wireless BACnet MS/TP system that maintains the standard, while still keeping a low latency.
INSTANT INSTALLATION
UNIQUE RELIABILITY
ECO-DESIGNED
LONG RANGE
- Instant commissioning – 3 simple steps, commission the W-BACnet network in minutes.
- Mesh network – cover an entire building, utilizing the mesh network as your infrastructure.
- Range – 500 meters (line-of-sight) per hop in the mesh network.
- Cognitive Coexistence – LumenRadio’s patented technology provides industrial-grade reliability and immunity to interference.
- Self-optimizing network – the mesh network will always find the best way to send messages through the network between devices.
POWER
- Voltage range AC: 24VAC ±10%
- Voltage range DC: 12-24VDC ±10%
- Max power consumption: 2.5W
- Conductor cross section (stranded): 0.2 – 1.5mm2
- Conductor cross section (solid): 0.2 – 1.5mm2
- AWG: 24 – 16
- 24V throughput power: N/A
- Power source restriction:Only to be powered by a UL-listed LPS power supply of max 15W
ENVIRONMENT
- Ambient operating temperature: -20 to +55°C
- Ambient storage temperature: -30 to +80°C
- Relative humidity: 10 – 95% non-condensing
MECHANICAL
- Dimensions in mm (WxHxD): 48x85x22
- Weight: 55g
- Protection level: IP40

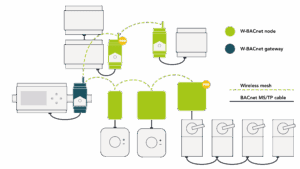

A W-BACnet network consists of a single W-BACnet Gateway with up to 100 W-BACnet Nodes. Connect your BACnet MS/TP controller using RS485 to the W-BACnet Gateway, and then each of your BACnet MS/TP devices with RS485 to the W-BACnet nodes.
The W-BACnet network is built on LumenRadio’s MiraMesh, a self-forming and self-healing wireless mesh technology.
