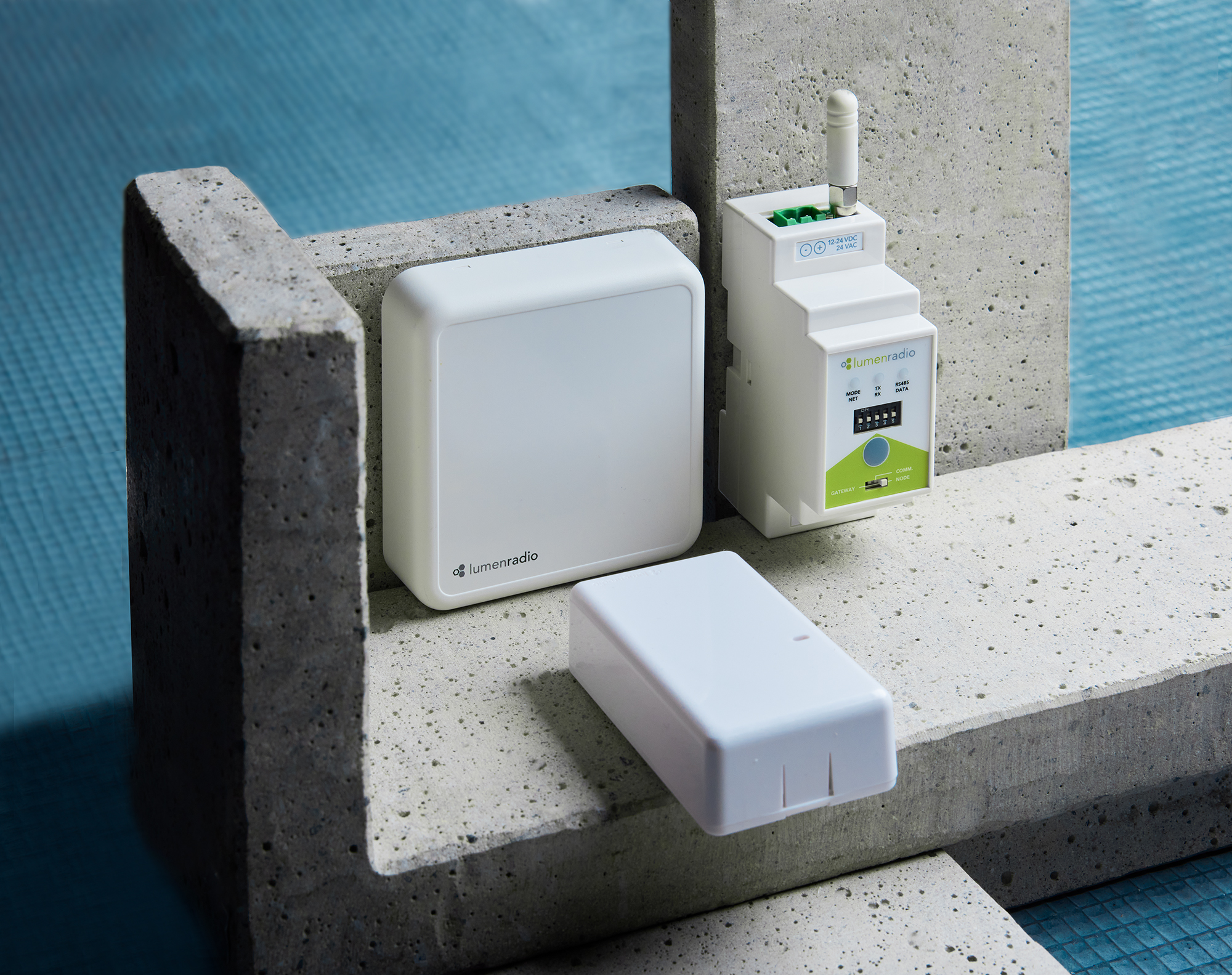

W-BACnet DIN rail
SKU 840-2220
- Wireless BACnet for your electrical cabinet.
W-BACnet replaces the cabling with a reliable wireless mesh eliminating the time-consuming installation planning, cabling, daisy-chaining and troubleshooting. With W-BACnet, it is easy to retrofit connectivity to already installed devices, instantaneously converting individually siloed devices to a wireless network. The product enables flexibility, saving time and costs, including during installation and steady-state operation.
The W-BACnet acts as a proxy for the connected BACnet MSTP device, effectively extending the bus and creating the possibility to make legacy products wireless. A W-BACnet network consists of a single W-BACnet Gateway with up to 100 W-BACnet Nodes. Connect your BACnet MS/TP controller using RS485 to the W-BACnet Gateway, and then each of your BACnet MS/TP devices with RS485 to the W-BACnet nodes.
The W-BACnet product is built upon LumenRadio’s patented meshing technology MiraMesh - providing ultra-reliable device-to-device connectivity, easy installation, concurrent Bluetooth and extended indoor range. MiraMesh is used in a large number of different applications around the world for building automation, HVAC control, lighting control and industrial sensor networks.
Instant installation
Unique reliability
Baud rate agnostic
Long range
- Instant commissioning – 3 simple steps, commission the W-BACnet network in minutes.
- Mesh network – cover an entire building, utilizing the mesh network as your infrastructure.
- Range – 700 meters (line-of-sight) per hop in the mesh network (approximately 50- 70 m indoors with walls)
- Cognitive Coexistence – LumenRadio’s patented technology provides industrial-grade reliability and immunity to interference.
- Self-optimizing network – the mesh network will always find the best way to send messages through the network between devices.
- Modular configuration – no need for the same baud rate across all devices, W-BACnet supports individual settings.
- Power supply AC: 24 VAC ±15%
- Power supply DC: 12–24 VDC ± 15%
- Max. power consumption: 2.5 W
- Auto resettable fuse: Yes
- Solid cable rating, connector: 0.2 – 1.5 mm2
- Stranded cable rating, connector: 0.2 – 1.5 mm2
- Conductor sizes (AWG): 24 – 16
- Range – 700 meters (line-of-sight) per hop in the mesh network (approximately 50- 70 m indoors with walls)
- IP class: 20
- Dimensions (W x H x D): 36.5 x 93.0 x 58.7
- Weight: 87 g
- Power source restriction: Only to be powered by a UL listed LPS power supply of max 15 W
- Ambient operating temperature: -20 to +55°C
- Ambient storage temperature: -30 to +80°C
- Relative humidity: 10 – 95% non-condensing
- Material: ABS UL94-V0 Color:
- White Frequency band: 2.45 GHz, ISM band (2400-2483 MHz)
- Baud rate: 9 600, 19 200, 38 400, 76 800 bps
- Number of Nodes: 100 Nodes in one wireless network Max. number of hops: 8 hops in the meshing network
A W-BACnet network consists of a single W-BACnet Gateway with up to 100 W-BACnet Nodes. Connect your BACnet MS/TP controller using RS485 to the W-BACnet Gateway, and then each of your BACnet MS/TP devices with RS485 to the W-BACnet nodes. The W-BACnet network is built on LumenRadio’s MiraMesh, a self-forming and self-healing wireless mesh technology.
The device is an “end device with internal terminal resistors”. Can this termination be switch off?
No it can not. Typical usage of the product is that the product is end of line.
